Removing Front Crank Bearing

Tools Needed:  Dremel tool, heavy duty cutting disk, cold chisel, hammer, 19mm socket and small 3 arm puller

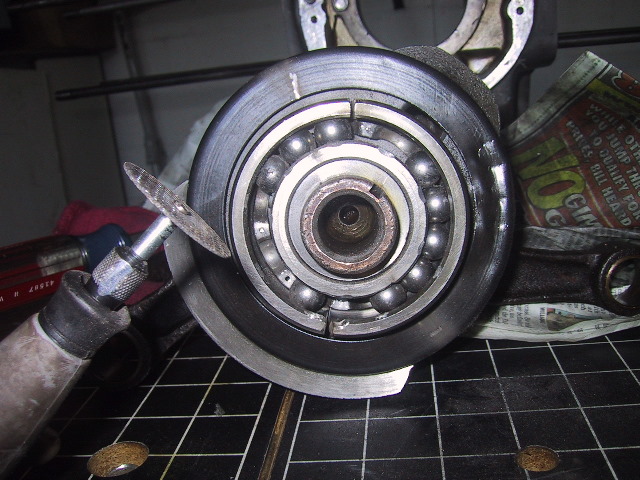

Use the Dremel with reinforced cutting disk to cut 98% of the way through the outer race of the bearing at 12 and 6 o'clock.

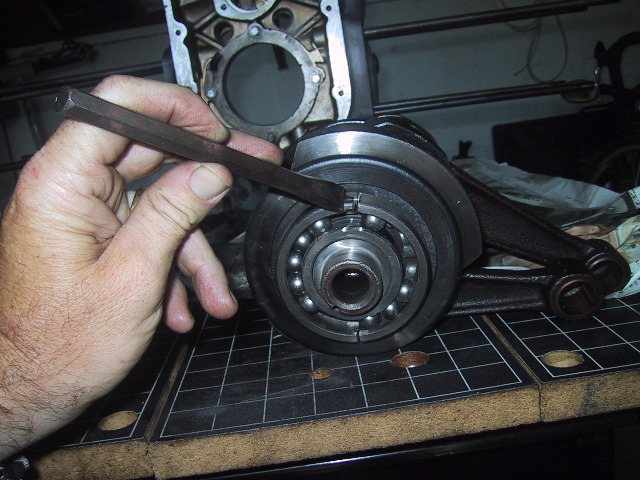

Take the cold chisel and it give a crisp smack at each cut...

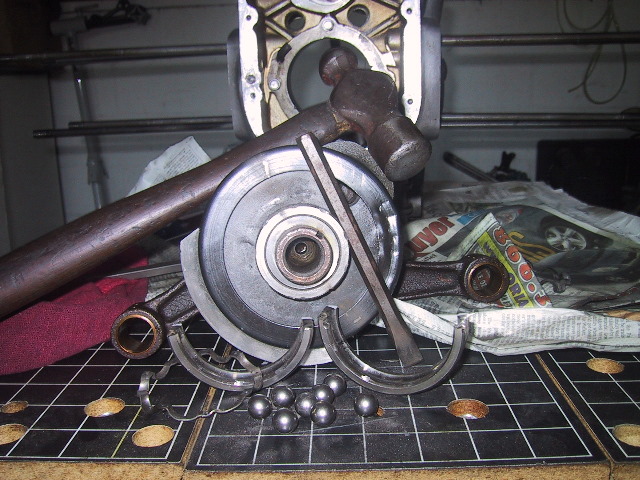

...and be prepared to catch ball bearings.

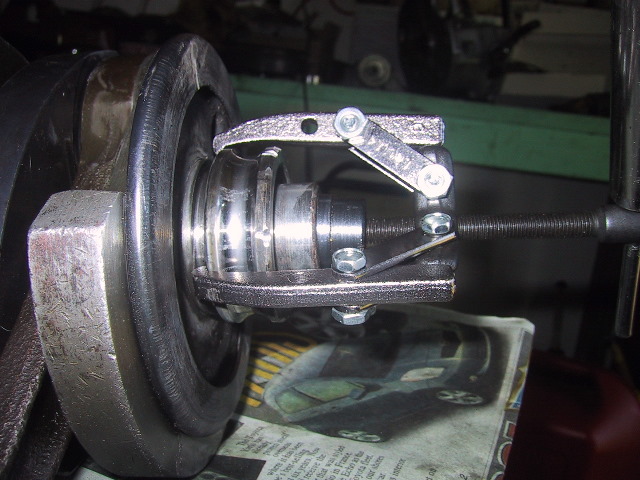

Place the 19mm socket on the crank end and mount the puller to the inner race.

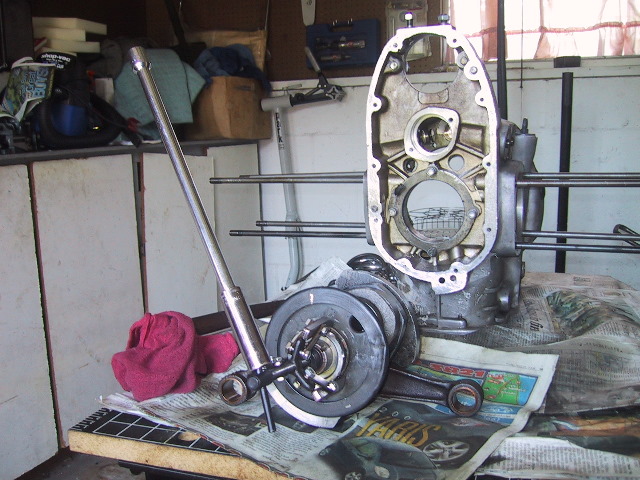

I used a socket and extension as a cheater bar to get things moving.

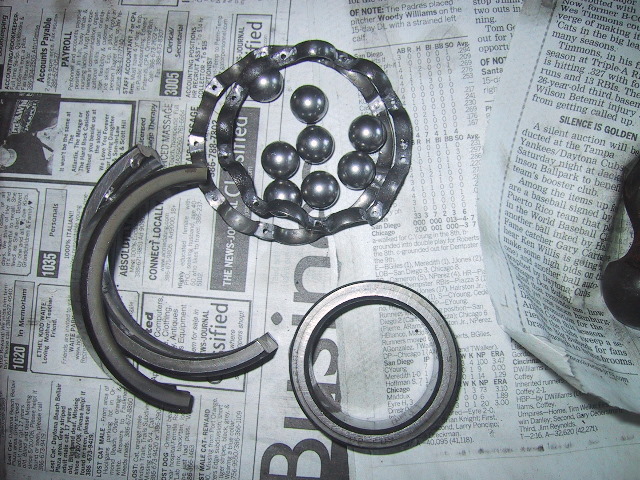

The bearing bits & pieces.

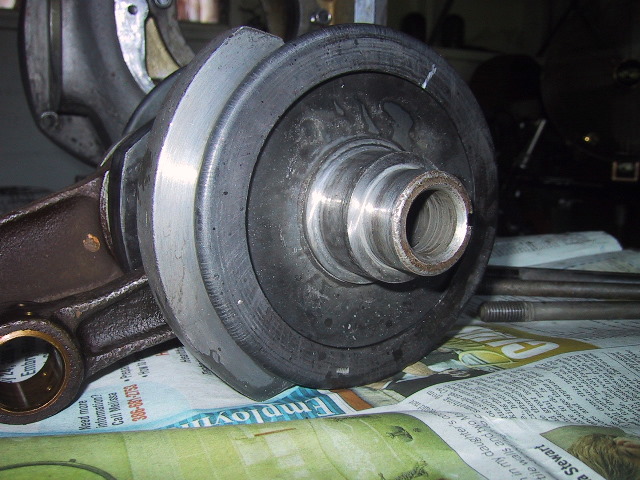

Crank is ready to get the slingers cleaned and to be measured for tolerances.
