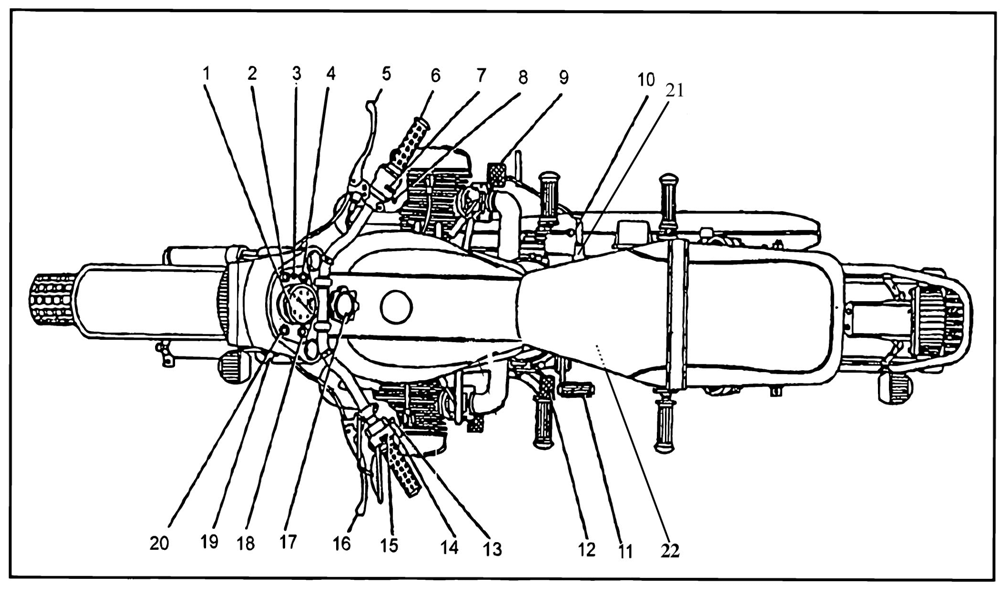

Controls and Instrumentations |
| |
|
| 1-Speedometer |
12-Gear shift lever |
| 2-Turn indicator lamp |
13-Turn indicator switch |
| 3-Trip odometer reset button |
14-Horn button |
| 4-Neutral/Reverse lamp |
15-High/low beam switch |
| 5-Front brake lever |
16-Clutch lever |
| 6-Throttle control |
17-Steering damper |
| 7-Ignition kill switch |
18-High beam lamp |
| 8-Electric start switch |
19-Ignition lock |
| 9-Rear/sidecar brake pedal |
20-Alternator lamp |
| 10-Reverse lever |
21-Parking brake |
| 11-Kick start lever |
22-Master battery switch (not pictured,
under seat) |
